ISR OFFERINGS

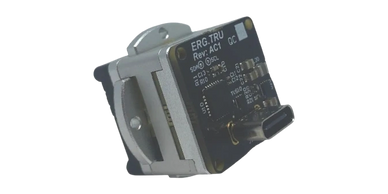

TRUVISION 320 or 640 Resolution ISR Thermal Core
TRUVISION 320 or 640 Resolution ISR Thermal Core
TRUVISION 320 or 640 Resolution ISR Thermal Core
Specifications:
- Pixel Pitch: 12 μm
- Dimensions: 21 × 21 × 19 mm
- Array format: 320 x 240 or 640 x 480
- Spectral Range: LWIR 8 μm – 14 μm
- Digital Zoom: 1× - 4× or 1× - 8×
- Frame Rate: Up to 60 Hz
- Output Video Resolution: 640 x 480
- Image Orientation: Adjustable
- Non-Uniformity Correction: Built-in shutter with FFC
- Symbol overlay: Full overlay of each frame
- Control Channels: UART or USB
- Peripheral Channels: I2C, SDIO
- Video Channels: CMOS, USB, LVDS

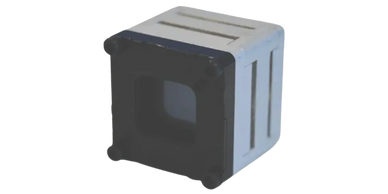

TRUVISION 1280 HD ISR Thermal Core
TRUVISION 320 or 640 Resolution ISR Thermal Core
TRUVISION 320 or 640 Resolution ISR Thermal Core
Specifications:
- Pixel Pitch: 12 μm
- Dimensions: 36 × 38.7 × 25.8 mm
- Array format: 1280 x 1024
- Spectral Range: LWIR 8 μm – 14 μm
- Digital Zoom: 1× - 8×
- Frame Rate: Up to 60 Hz
- Output Video Resolution: 1280x1024
- Image Orientation: Adjustable
- Non-Uniformity Correction: Built-in shutter with FFC
- Symbol overlay: Full overlay of each frame
- Control Channels: UART or USB
- Peripheral Channels: I2C, SDIO
- Video Channels: CMOS, USB, LVDS
UAS analog video interface board
TRUVISION 320 or 640 Resolution ISR Thermal Core

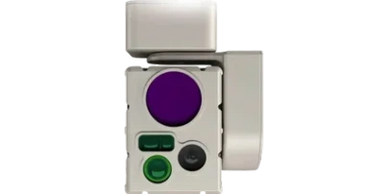

3-Axis Gimbal with Lowlight CCD, LWIR, & LRF
Specifications:
- Control Channels: UART or USB
- Peripheral Channels: I2C, SDIO
- Video Channels: CMOS, USB, LVDS
3-Axis Gimbal with Lowlight CCD, LWIR, & LRF
4-Axis Gimbal with Lowlight CCD, LWIR,LRF, & IR Illuminator
3-Axis Gimbal with Lowlight CCD, LWIR, & LRF
Specifications:
- AZIMUTH: 360° CONTINUOUS
- ELEVATION: -90° to +90°
- ACCURACY: < 0.2 mrad
- ANGULAR SPEED: > 60 degree / s >
- ANGULAR ACCELERATION: 60 degree/s2
- WEIGHT WORKING: < 1500 gr
- TEMPERATURE IP LEVEL: -20 to +55 °C
- IP LEVEL: IP66
- INPUT VOLTAGE: 12 - 24 VDC
- POWER CONSUMPTION: < 25 W
- CONTROL: RS485 - ETHERNET
- VIDEO OUTPUT: ETHERNET - H264/H265
- VIDEO CHANNELS: CMOS, USB, LVDS
- SENSOR: CMOS, LWIR
- DEVICE: LRF
- RESOLUTION: 1920x1080, 640x512
- WAVELENGTH: 905 nm
- FOCAL: 4.3 - 129 mm, 13-40 mm
- RANGE: 5m-3000m
- FOV: 63.7° - 2.3°, 47.96°- 15.59°
- ZOOM: 3x-30x
- DIVERGENCE: 3 mrad
- ACCURACY: 2m
4-Axis Gimbal with Lowlight CCD, LWIR,LRF, & IR Illuminator
4-Axis Gimbal with Lowlight CCD, LWIR,LRF, & IR Illuminator
4-Axis Gimbal with Lowlight CCD, LWIR,LRF, & IR Illuminator
Specifications:
- AZIMUTH: 360° CONTINUOUS
- ELEVATION: -125° to +15°
- ACCURACY: < 0.2 mrad
- ANGULAR SPEED: > 40 degree / s >
- ANGULAR ACCELERATION: 40 degree/s2
- WEIGHT WORKING: < 800 gr
- TEMPERATURE IP LEVEL: -20 to +55 °C
- IP LEVEL: IP66
- INPUT VOLTAGE: 24 - 28 VDC
- POWER CONSUMPTION: < 35 W
- CONTROL: RS485 - ETHERNET
- VIDEO OUTPUT: ETHERNET - H264/H265
- VIDEO CHANNELS: CMOS, USB, LVDS
- SENSOR: CMOS, LWIR
- DEVICE: LRF, Illuminator
- RESOLUTION: 1920x1080, 640x512
- WAVELENGTH: 905 nm, 850 nm
- FOCAL: 4.3 - 129 mm, 35 mm
- RANGE: 5m-2000m
- FOV: 63.7° - 2.3°, 12.57°- 9.43°
- ZOOM: 4x-50x
- DIVERGENCE: 6 mrad
- ACCURACY: 1m
Wireless Linking Options
P201-D
P201-WS
P201-WS
Specifications:
- DIMENSIONS: 23x24x2.85mm
- TX POWER: 24dbm
- MAXIMUM DISTANCE: 10km
- FREQUENCY BAND: 2.4GHz & 5.8G
P201-WS
P201-WS
P201-WS
Specifications:
- TX POWER: 26dbm
- MAXIMUM DISTANCE: 20km
- FREQUENCY BAND: 600MHz-800MHz
P301-D
P201-WS
P301-D
Specifications:
- TX POWER: 28dbm
- MAXIMUM DISTANCE: 15km
- FREQUENCY BAND: 2.4GHz & 5.8G
P401-D
P401-DS
P301-D
Specifications:
- DIMENSIONS: 23x29x2.85mm
- TX POWER: 28dbm
- MAXIMUM DISTANCE: 15km
- FREQUENCY BAND: 2.4GHz & 5.8G
P401-DS
P401-DS
P401-DS
Specifications:
- DIMENSIONS: 23x29x2.85mm
- TX POWER: 10-25dbm
- MAXIMUM DISTANCE: 15km
- FREQUENCY BAND: 2.4GHz & 5.8G
